5GHz  Mid Power 802.11ax RF Front-end Module

KCT8547HE-1

5GHz Mid Power 802.11ax RF Front-end Module

Introduction

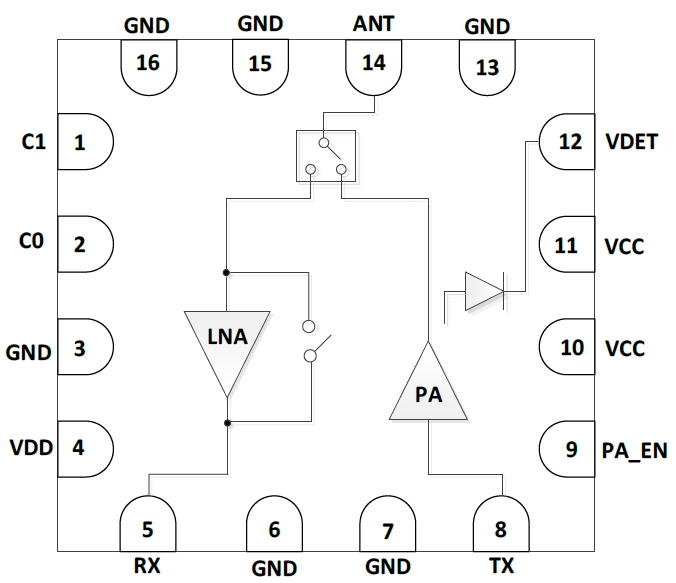

KCT8547HE-1 is a highly integrated RF Front-End Integrated Circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.95GHz range. KCT8547HE-1 integrates a high-efficiency high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network and harmonic filters all in one device.


KCT8547HE-1 has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurately monitoring of output power from the PA.


KCT8547HE-1 is assembled in a compact, low-profile 3x3x0.55mm 16-lead MIS package. KCT8547HE-1 is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.


Specifications

Integrated 802.11ax 5GHz PA, LNA with bypass and T/R switch

Fully-matched input and output

Integrated power detector

Transmit gain: 29dB at 5V

Receive gain: 16dB at 5V

Noise Figure: 1.6dB at 5V

Output power: +17dBm @ -43dB EVM, HE160/MCS11, 5V

                        +19dBm @ -40dB EVM, HE160/MCS11, 5V

                        +20.5dBm @ -35dB EVM, VHT80/MCS9, 5V

                        +21.5dBm @ -30dB EVM, HT20/MCS7, 5V

Integrated 2.4GHz Notch Filter

ESD protection circuitry on all PINs

Simplified external components required

Small package: MIS-16L 3mm x 3mm x0.55mm

MSL1, 260°C per JEDEC J-STD-020

ROHS and REACH Compliant


5GHz  Mid Power 802.11ax RF Front-end Module

More products

KCT2828L

1.0 ~ 6.0 GHz Low insertion loss SPDT RF Switch

  • KCT8525D-1

    5GHz Mid Power 802.11ac RF Front-end Module

  • KCT8575SD

    5GHz Mid-High Power 802.11ax RF Front-end Module

  • KCT8247HE-1

    2.4GHz Mid-High Power 802.11ax RF Front-end Module
